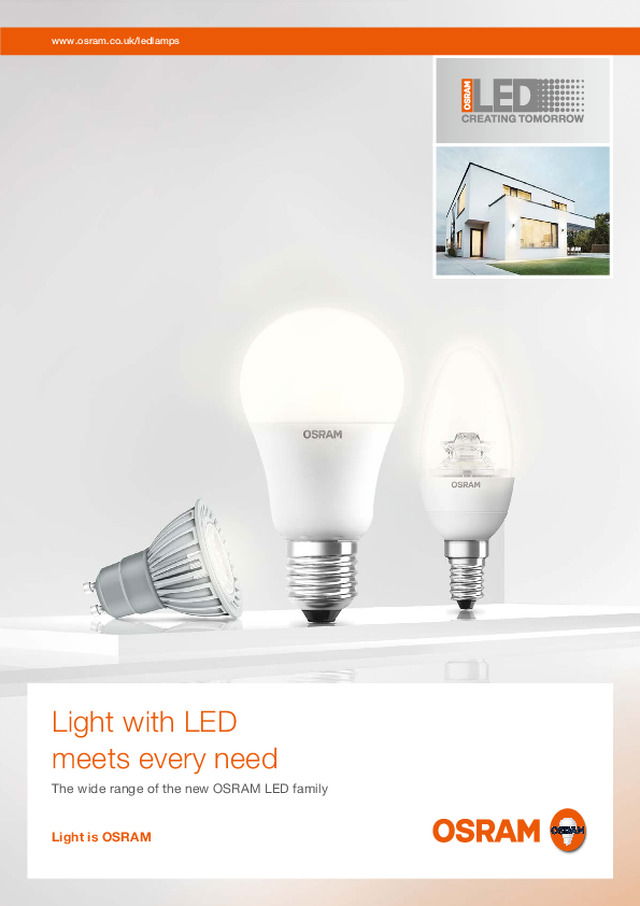

Light with LED meets every need

www.osram.co.uk/ledlamps Light is OSRAM Light with LED meets every need The wide range of the new OSRAM LED family

2 Beneﬁ t from this remarkable trend – with our new portfolio OSRAM is going into the new lighting season with an expanded and completely revised LED lamp portfolio. Our innovative products not only cover all the different areas of application relevant to the various target groups but also comply with the latest ErP requirements 1 . They are therefore ideal for meeting existing demand – and the growing demand over the next few years – for both the professional and domestic sectors. 1 For more information on the new Ecodesign Regulations ( ErP ) and the Energy Consumption Labeling Regulation see pages 32/33 OSRAM LED Lamps | Trends & Competence

5 OSRAM PARATHOM ® advanced 12 OSRAM PARATHOM ® PRO advanced 06 OSRAM PARATHOM ® 18 OSRAM SubstiTUBE ® 25 OSRAM PARATHOM ® for special applications 28 Reliable LED lamps for demanding applications — Dimmable 2 — Long life of up to 25,000 hours — Good colour rendering of R a 80 — Good binning High-quality LED lamps for professional demands 1 — Dimmable 2 , LEDOTRON versions also available — Extremely long life of up to 50,000 hours — Good to excellent colour rendering of up to R a ≥ 90 — Very good binning ( SDCM ≤ 4 ) Versatile LED lamps for standard applications — Basic range — Very good price/performance ratio — Long life of up to 20,000 hours — Good colour rendering of R a 80 — Good binning LED tubes as alternatives to T8 ﬂ uorescent tubes — SubstiTUBE ® Basic for simple lighting tasks and SubstiTUBE ® Advanced for demanding lighting tasks with high luminous ﬂ ux — Quick, simple and safe relamping with no rewiring — Uniform illumination with no warm-up phase or ﬂ ickering — Extremely long life of up to 40,000 hours LED lamps for special tasks — OSRAM PARATHOM ® Special T26 – e. g. for luminaires with very small dimensions — OSRAM LEDinestra ® – e. g. for conventional tubular incandescent ﬁ ttings Innovative LED lamps for a wide range of standard and special applications OSRAM LED lamps have been grouped into ﬁ ve segments for greater clarity and to make it easier for you and your customers to ﬁ nd the right lamps for your particular needs. 1 The product characteristics of the PRO range do not apply to PARATHOM ® PRO PAR30 or PARATHOM ® PRO PAR38. 2 LED lamps can be operated on a wide range of standard dimmers; for details and results of compatibility tests go to www.osram.co.uk/dim and the links on that page to additional technical product information sheets. OSRAM LED Lamps | Segmentation

3 1 LED lamps can be operated on a wide range of standard dimmers; for details and results of compatibility tests go to www.osram.co.uk/dim and the links on that page to additional technical product information sheets. PARATHOM ® PRO advanced Base Replacementfor PARATHOM ® PRO advanced 1 Page Reﬂ ector GU10 35 W PRO PAR16 3524°/36°advanced, 5.2 W Dimmable 7 50 W PRO PAR16 50 24°/36°advanced, 6.8 W Dimmable 7 PRO LEDOTRONPAR16 50 6.8 W, 36° 11 75 W PRO PAR16 7536° advanced,10.5 W Dimmable 7 GU5.3 20 W PRO MR16 2024°/36°advanced, 5 W Dimmable 8 35 W PRO MR16 3524°/36°advanced,8 W Dimmable 8 42 W PRO MR16 42 36° advanced,8 W Dimmable 8 50 W PRO MR16 5036° advanced,12 W Dimmable 8 G53 50 W PRO LEDspot 111 50 24° advanced,12 W 9 CLASSIC A E27 60 W PRO LEDOTRON CL A60 frosted, 12 W 11 PARATHOM ® advanced Base Replacementfor PARATHOM ® advanced 1 Page Reﬂ ector GU10 20 W PAR16 20 36°advanced, 3 W Dimmable 13 35 W PAR16 35 36°advanced, 5 W Dimmable 13 50 W PAR16 50 36°advanced, 7.5 W Dimmable 13 GU5.3 20 W MR16 20 24°/36°advanced, 5 W Dimmable 14 35 W MR16 35 24°/36°advanced, 6.5 W Dimmable 14 CLASSIC A E27 40 W CL A40 advancedfrosted/clearsparkling, 6 W Dimmable Dimmable 15 60 W CL A60 advancedfrosted/clearsparkling, 10 W Dimmable Dimmable 15 75 W CL A75 advancedfrosted, 13.5 W Dimmable 15 CLASSIC B E14 25 W CL B25 advancedfrosted/clear sparkling, 3.8 W Dimmable Dimmable 16 40 W CL B40 advancedfrosted/clear sparkling, 6 W Dimmable Dimmable 16 CLASSIC P E14 25 W CL P25 advancedfrosted/clear sparkling, 3.8 W Dimmable Dimmable 17 40 W CL P40 advancedfrosted/clear sparkling, 6 W Dimmable Dimmable 17 E27 25 W CL P25 advanced frosted/clear sparkling, 3.8 W Dimmable Dimmable 17 40 W CL P40 advancedfrosted/clearsparkling, 6 W Dimmable Dimmable 17 OSRAM LED Lamps | Overview OSRAM LED lamps at a glance

4 Base Replacementfor PARATHOM ® Page Reﬂ ector GU10 20 W PAR16 20 36°, 2.5 W 19 35 W PAR16 35 36°, 4.6 W 19 GU5.3 20 W MR16 2036°, 4.5 W 19 35 W MR16 3536°, 7 W 19 GU4 20 W MR11 20 30°, 3.7 W 21 E27 75 W PRO PAR30 9030°, 13 W 20 120 W PRO PAR38100 20°,15 W 20 E14 40 W R50 40 30°, 3.9 W 21 CLASSIC A E27/B22d 15 W CL A15 clear, 2 W 22 25 W CL A25 frosted, 4 W 22 40 W CL A40 frosted, 7 W/8 W 22 60 W CL A60 frosted, 10 W 22 CLASSIC B E14 15 W CL B15 clear, 2 W 23 25 W CL B25 clear/frosted, 4 W/3.6 W 23 40 W CL B40 frosted/ clear sparkling,6 W 23 SubstiTUBE ® Base Replacementfor Basic Page Advanced Page G13 0.6 m ST8-HB2, 160°, 9 W 26 ST8-HA2, 130°, 10 W 27 1.2 m ST8-HB4, 160°, 18 W 26 ST8-HA4, 130°, 20 W 27 1.5 m ST8-HB5, 160°, 22 W 26 ST8-HA5, 130°, 30 W 27 T8 ﬂ uorescent tube PARATHOM ® for special applications Type/Base Replacementfor PARATHOM ® Page T26/E14 12 W Special T26 15 frosted, 1.4 W 29 S14s 25 W LEDinestra ® , frosted, 6 W 29 S14d 25 W LEDinestra ® , frosted, 6 W 29 Base Replacementfor PARATHOM ® Page CLASSIC P E14 15 W CL P15 clear, 2 W 24 25 W CL P25 clear/frosted, 4 W/3.6 W 24 40 W CL P40 frosted/clear sparkling,6 W 24 E27 15 W CL P15 clear, 2 W 24 25 W CL P25 clear/frosted, 4 W/3.6 W 24 40 W CL P40 frosted/clear sparkling,6 W 24 PARATHOM ® OSRAM LED Lamps | Overview

6 OSRAM PARATHOM ® PRO advanced | Beneﬁ ts LED lamps for professional demands: OSRAM PARATHOM ® PRO advanced OSRAM PARATHOM ® PRO LED advanced lamps offer impressive performance, dimming capability 2 and a wide range of options – with screw-base and plug-in base versions for mains voltage and low voltage – to meet the highest demands in virtually any professional application. 1 OSRAM PARATHOM ® PRO advanced 1 — Dimmable 2 — From September 2013 all the lamps will comply with the requirements of the ErP Regulations — LEDOTRON versions also available — Extremely long life — Extremely high resistance to switching transients — Very good binning ( SDCM ≤ 4 ) — Good to excellent colour rendering Better safe than sorry OSRAM offers a ﬁ ve-year guarantee on PARATHOM ® PRO advanced LED lamps operated in accordance with OSRAM speciﬁ cations ( for precise terms and conditions of the guarantee go to www.osram.co.uk/guarantee ) . 1 The product characteristics of the PRO range do not apply to PARATHOM ® PRO PAR30 or PARATHOM ® PRO PAR38. 2 LED lamps can be operated on a wide range of standard dimmers; for details and results of compatibility tests go to www.osram.co.uk/dim and the links on that page to additional technical product information sheets.

7 OSRAM PARATHOM ® PRO advanced | Technical Data OSRAM PARATHOM ® PRO PAR16 advanced Product reference Product number ( EAN ) 1 1 2 GU10 – 220–240 V – 24° – Box PRO PAR16 35 24° advanced 1 4052899902213 5.2 230 900 2700 90 ✓ 58 50 50,000 A PRO PAR16 50 24° advanced 1 4052899901384 6.8 350 1700 2700 90 ✓ 58 50 30,000 A GU10 – 220–240 V – 36° – Box PRO PAR16 35 36° advanced 1 4052899902244 5.2 230 600 2700 90 ✓ 58 50 50,000 A PRO PAR16 35 36° advanced 1 4052899902251 5.2 230 600 3000 90 ✓ 58 50 50,000 A PRO PAR16 35 36° advanced 1 4052899902268 5.2 230 600 4000 90 ✓ 58 50 50,000 A PRO PAR16 50 36° advanced 1 4052899901414 6.8 350 900 2700 90 ✓ 58 50 30,000 A PRO PAR16 50 36° advanced 1 4052899901421 6.8 350 900 3000 90 ✓ 58 50 30,000 A PRO PAR16 50 36° advanced 1 4052899901438 6.8 350 900 4000 90 ✓ 58 50 30,000 A PRO PAR16 75 36° advanced 2 4052899906259 10.5 540 1300 2700 80 ✓ 85 50 24,000 A PRO PAR16 75 36° advanced 2 4052899906266 10.5 540 1300 3000 80 ✓ 85 50 24,000 A PRO PAR16 75 36° advanced 2 4052899906273 10.5 540 1300 4000 80 ✓ 85 50 24,000 A 1 2 Lamp type HALOPAR ® 16 PARATHOM ® PRO PAR16 35 36° advanced Number of light points 1 1 Lamp wattage 35 W 5.2 W Average life 2000 h 50,000 h Lamp replacement costs 3.32 £/unit 23.60 £/unit Connected load 0.035 kW 0.0052 kW Number of lamps required in 12 months 3 lamps 1 lamp Lamp purchase and relamping costs 15.96 £ 25.60 £ Power consumption after 12 months 152.9 kWh 22.7 kWh Savings after 1 year 22.90 £ Savings after 2 years 66.08 £ Basis: Electricity price £ 0.25/kWh, lamp costs = RRP ( European average ) , relamping costs/light source £ 2.00 ( 0.05 hours at £ 40/hour ) , hours burned per day/year: 12 h/4368 h OSRAM PARATHOM ® PRO PAR16 advanced PRO PAR16 advanced mains voltage reﬂ ector lamps with GU10 retroﬁ t base — Average life of up to 50,000 hours — Extremely high resistance to switching transients ( up to 1,000,000 switching cycles ) — Good to excellent colour rendering of up to CRI ≥ 90 — Very small differences in colour temperature — Dimmable 2 — Available in light colours 2700, 3000 and 4000 and with beam angles of 24° and 36° — Replacement options:– 35 W halogen lamp – PRO PAR16 35 advanced– 50 W halogen lamp – PRO PAR16 50 advanced– 75 W halogen lamp – PRO PAR16 75 advanced — Standard pack: 10 Impressive facts & ﬁ gures: Replacing a conventional halogen lamp with a PARATHOM ® PRO PAR16 35 36° advanced lamp can pay for itself after only 7 months. 1 All the technical parameters apply to the entire lamp. In view of the complex manufacturing process for light emitting diodes, the typical values given above for the technical LED parameters are merely statistical values that do not necessarily correspond to the actual technical parameters of an individual product; individual products may vary from the typical values. 2 LED lamps can be operated on a wide range of standard dimmers; for details and results of compatibility tests go to www.osram.co.uk/dim and the links on that page to additional technical product information sheets.

8 OSRAM PARATHOM ® PRO advanced | Technical Data OSRAM PARATHOM ® PRO MR16 advanced Product reference Product number ( EAN ) 1 1 2 GU5.3 – 12 V – 24° – Box PRO MR16 20 24° advanced 1 4052899904668 5 210 950 2700 90 ✓ 46 50 50,000 A PRO MR16 20 24° advanced 1 4052899904675 5 210 950 3000 90 ✓ 46 50 50,000 A PRO MR16 35 24° advanced 2 4052899901148 8 350 1600 2700 90 ✓ 50 50 30,000 A PRO MR16 35 24° advanced 2 4052899901155 8 350 1600 3000 90 ✓ 50 50 30,000 A GU5.3 – 12 V – 36° – Box PRO MR16 20 36° advanced 1 4052899904699 5 210 530 2700 90 ✓ 46 50 50,000 A PRO MR16 20 36° advanced 1 4052899904705 5 210 530 3000 90 ✓ 46 50 50,000 A PRO MR16 20 36° advanced 1 4052899904712 5 210 530 4000 90 ✓ 46 50 50,000 A PRO MR16 35 36° advanced 2 4052899901179 8 350 900 2700 90 ✓ 50 50 30,000 A PRO MR16 35 36° advanced 2 4052899901186 8 350 900 3000 90 ✓ 50 50 30,000 A PRO MR16 35 36° advanced 2 4052899901193 8 350 900 4000 90 ✓ 50 50 30,000 A PRO MR16 42 36° advanced 2 4052899014312 8 470 1200 2700 80 ✓ 50 50 30,000 A PRO MR16 42 36° advanced 2 4052899014350 8 470 1200 3000 80 ✓ 50 50 30,000 A PRO MR16 42 36° advanced 2 4052899014381 8 470 1200 4000 80 ✓ 50 50 30,000 A PRO MR16 50 36° advanced 3 4052899906198 12 620 1600 2700 80 ✓ 77 50 30,000 A PRO MR16 50 36° advanced 3 4052899906204 12 620 1600 3000 80 ✓ 77 50 30,000 A PRO MR16 50 36° advanced 3 4052899906211 12 620 1600 4000 80 ✓ 77 50 30,000 A 1 2 3 Basis: Electricity price £ 0.25/kWh, lamp costs = RRP ( European average ) , relamping costs/light source £ 2.00 ( 0.05 hours at £ 40/hour ) , hours burned per day/year: 12 h/4368 h OSRAM PARATHOM ® PRO MR16 advanced PRO MR16 advanced low voltage reﬂ ector lamps with GU5.3 retroﬁ t base — Compatible with leading-edge and trailing-edge dimmers for ≥ 35 W replacement lamps 2 — Compatible with a large number of transformers available on the market 3 — Average life of up to 50,000 hours — Extremely high resistance to switching transients ( up to 1,000,000 switching cycles ) — Good to excellent colour rendering of up to CRI ≥ 90 — Very good binning ( SDCM ≤ 4 ) — Dimmable 2 — Available in light colours 2700, 3000 and 4000 and with beam angles of 24° and 36° — Replacement options:– 20 W halogen lamp – PRO MR16 20 advanced– 35 W halogen lamp – PRO MR16 35 advanced– 50 W halogen lamp – PRO MR16 50 advanced — Standard pack: 10 Impressive facts & ﬁ gures: Replacing a conventional halogen lamp with a PARATHOM ® PRO MR16 20 36° advanced lamp can pay for itself after only 11 months. 1 All the technical parameters apply to the entire lamp. In view of the complex manufacturing process for light emitting diodes, the typical values given above for the technical LED parameters are merely statistical values that do not necessarily correspond to the actual technical parameters of an individual product; individual products may vary from the typical values. 2 LED lamps can be operated on a wide range of standard dimmers; for details and results of compatibility tests go to www.osram.co.uk/dim and the links on that page to additional technical product information sheets. 3 For details go to www.osram.co.uk/low-voltage-ledlamps Lamp type DECOSTAR ® 51 PARATHOM ® PRO MR16 20 36° advanced Number of light points 1 1 Lamp wattage 20 W 5 W Average life 2000 h 50,000 h Lamp replacement costs 2.88 £/unit 20.72 £/unit Connected load 0.02 kW 0.005 kW Number of lamps required in 12 months 3 lamps 1 lamp Lamp purchase and relamping costs 14.64 £ 22.72 £ Power consumption after 12 months 87.4 kWh 21.8 kWh Savings after 1 year 8.30 £ Savings after 2 years 34.44 £

9 OSRAM PARATHOM ® PRO advanced | Technical Data OSRAM PARATHOM ® PRO LEDspot 111 advanced Product reference Product number ( EAN ) 1 1 2 G53 – 12 V – 24° – Box PRO LEDspot 111 50 advanced 1 4008321972392 12 500 3600 2700 85 ✓ 58.5 111 45,000 A PRO LEDspot 111 50 advanced 1 4008321972415 12 550 4000 3000 85 ✓ 58.5 111 45,000 A 1 OSRAM PARATHOM ® PRO LEDspot 111 advanced PRO111 advanced low voltage LED reﬂ ector lamps with G53 retroﬁ t base — Average life of up to 45,000 hours — Excellent compatibility with transformers available on the market 3 — Good colour rendering — Optimum design for glare-free light — Dimmable 2 — Replacement options:– 50 W AR111 halogen lamp – PRO LEDspot 111 50 advanced — Standard pack: 6 Impressive facts & ﬁ gures: Replacing a conventional halogen lamp with a PARATHOM ® PRO LEDspot 111 advanced lamp can pay for itself after only 7 months. Basis: Electricity price £ 0.25/kWh, lamp costs = RRP ( European average ) , relamping costs/light source £ 2.00 ( 0.05 hours at £ 40/hour ) , hours burned per day/year: 12 h/4368 h 1 All the technical parameters apply to the entire lamp. In view of the complex manufacturing process for light emitting diodes, the typical values given above for the technical LED parameters are merely statistical values that do not necessarily correspond to the actual technical parameters of an individual product; individual products may vary from the typical values. 2 LED lamps can be operated on a wide range of standard dimmers; for details and results of compatibility tests go to www.osram.co.uk/dim and the links on that page to additional technical product information sheets. 3 For details go to www.osram.co.uk/low-voltage-ledlamps Lamp type HALOSPOT ® 111 PARATHOM ® PRO LEDspot 111 advanced Number of light points 1 1 Lamp wattage 50 W 12 W Average life 3000 h 45,000 h Lamp replacement costs 12.75 £/unit 47.84 £/unit Connected load 0.05 kW 0.012 kW Number of lamps required in 12 months 2 lamps 1 lamp Lamp purchase and relamping costs 29.50 £ 49.84 £ Power consumption after 12 months 218.4 kWh 52.4 kWh Savings after 1 year 21.16 £ Savings after 2 years 77.40 £

10 OSRAM PARATHOM ® PRO | LEDOTRON Pioneering: OSRAM PARATHOM ® PRO LEDOTRON LEDOTRON takes dimming into the digital age. This new open standard provides the basis for trouble-free dimming thanks to perfectly matched light sources and controllers. New digital dimming standard: LEDOTRON Modern LED lamps are superior to conventional light sources such as incandescent lamps in almost every respect. However, perfect dimming has not always been possible when conventional controllers have been used in conjunction with new LED technology. Leading players in the electrical industry, namely Gira, Jung, Merten, Schneider Electric, Radium and OSRAM, there-fore cooperated on the development of an open, future- proof and compliant dimming standard for LED lamps and compact ﬂ uorescent lamps. It goes by the name of LEDOTRON. The beneﬁ ts of LEDOTRON are clear: — LEDOTRON uses existing cabling and does not require any chasing or plastering work — LEDOTRON is easy to install and ready for use immediately — LEDOTRON controls brightness and is easy to operate — LEDOTRON will in future also be able to control white tones and lighting scenes with appropriate lamps — LEDOTRON complies with all relevant standards and offers high levels of reliability — LEDOTRON is a future-proof industry standard that offers impressive scalability LEDOTRON: digital dimming technology for LED lamps and energy saving lamps

11 OSRAM PARATHOM ® PRO | LEDOTRON Technical Data OSRAM PARATHOM ® PRO LEDOTRON PAR16 OSRAM PARATHOM ® PRO LEDOTRON CLASSIC A Product reference Product number ( EAN ) 1 1 2 GU10 – 220–240 V – 36° – Box PRO LEDOTRON PAR16 50 36° 1 4008321988560 6.8 350 900 2700 80 ✓ 85 50 30,000 A Product reference Product number ( EAN ) 1 1 2 E27 – 220–240 V – Box PRO LEDOTRON CL A60 frosted 2 4008321988553 12 810 – 2700 80 ✓ 116 62 30,000 A 1 2 OSRAM PARATHOM ® PRO LEDOTRON PAR16/CLASSIC A — Compatibility between the LED lamp and controller guaranteed — Equipped with ﬂ exible scene control — Excellent dimmability: digital dimming — Average life of up to 30,000 hours — 5-year guarantee 3 — Standard pack: 10 1 All the technical parameters apply to the entire lamp. In view of the complex manufacturing process for light emitting diodes, the typical values given above for the technical LED parameters are merely statistical values that do not necessarily correspond to the actual technical parameters of an individual product; individual products may vary from the typical values. 2 With LEDOTRON dimmer. 3 For terms and conditions of the guarantee go to www.osram.co.uk/guarantee

12 OSRAM PARATHOM ® advanced | Beneﬁ ts LED lamps for demanding applications: OSRAM PARATHOM ® advanced OSRAM PARATHOM ® advanced LED lamps are available in many different versions, including screw-base and plug-in base types, lamps for mains voltage and low voltage, reﬂ ector lamps and classic light bulb shapes. Thanks to this variety and their excellent photometric and performance values, they are ideal for both commercial and high quality domestic lighting. OSRAM PARATHOM ® advanced — Dimmable 1 — All LED lamps comply with the ErP requirements which come into force in September 2013 — Long life — High resistance to switching transients — Small differences in colour temperature from lamp to lamp — Good colour rendering Better safe than sorry OSRAM offers a four-year guarantee on PARATHOM ® LED lamps operated in accordance with OSRAM speciﬁ cations ( for precise terms and conditions of the guarantee go to www.osram.co.uk/guarantee ) . 1 LED lamps can be operated on a wide range of standard dimmers; for details and results of compatibility tests go to www.osram.co.uk/dim and the links on that page to additional technical product information sheets.

13 l d l d l d OSRAM PARATHOM ® advanced | Technical Data OSRAM PARATHOM ® PAR16 advanced Product reference Product number ( EAN ) 1 1 2 GU10 – 220–240 V – 36° – Box PAR16 20 36° advanced 1 4008321881816 3 130 330 2700 80 ✓ 58 50 25,000 A PAR16 35 36° advanced 2 4008321881960 5 250 600 2700 80 ✓ 58 50 25,000 A PAR16 35 36° advanced 2 4008321882035 5 260 600 3000 80 ✓ 58 50 25,000 A PAR16 35 36° advanced 2 4008321882066 5 265 700 4000 80 ✓ 58 50 25,000 A PAR16 50 36° advanced 3 4008321882097 7.5 385 950 2700 80 ✓ 58 50 25,000 A PAR16 50 36° advanced 3 4008321882127 7.5 390 950 3000 80 ✓ 58 50 25,000 A PAR16 50 36° advanced 3 4008321882158 7.5 400 1000 4000 80 ✓ 58 50 25,000 A 1 2 3 Basis: Electricity price £ 0.25/kWh, lamp costs = RRP ( European average ) , relamping costs/light source £ 2.00 ( 0.05 hours at £ 40/hour ) , hours burned per day/year: 12 h/4368 h OSRAM PARATHOM ® PAR16 advanced PAR16 mains voltage reﬂ ector lamps with GU10 retroﬁ t base — Average life of 25,000 hours — High resistance to switching transients ( up to 100,000 switching cycles ) — Good colour rendering — High luminous efﬁ cacy — Very narrow colour location — Dimmable 2 — Available in three light colours: 2700, 3000 and 4000 K — Replacement options:– 20 W halogen lamp – PAR16 20 advanced– 35 W halogen lamp – PAR16 35 advanced– 50 W halogen lamp – PAR16 50 advanced — Standard pack: 10 Impressive facts & ﬁ gures: Replacing a conventional halogen lamp with a PARATHOM ® PAR16 50 36° advanced lamp can pay for itself after only 5 months. Lamp type HALOPAR ® 16 PARATHOM ® PAR16 50 36° advanced Number of light points 1 1 Lamp wattage 50 W 7.5 W Average life 2000 h 25,000 h Lamp replacement costs 3.22 £/unit 22.24 £/unit Connected load 0.05 kW 0.0075 kW Number of lamps required in 12 months 3 lamps 1 lamp Lamp purchase and relamping costs 15.66 £ 24.24 £ Power consumption after 12 months 218.4 kWh 32.8 kWh Savings after 1 year 37.83 £ Savings after 2 years 94.68 £ 1 All the technical parameters apply to the entire lamp. In view of the complex manufacturing process for light emitting diodes, the typical values given above for the technical LED parameters are merely statistical values that do not necessarily correspond to the actual technical parameters of an individual product; individual products may vary from the typical values. 2 LED lamps can be operated on a wide range of standard dimmers; for details and results of compatibility tests go to www.osram.co.uk/dim and the links on that page to additional technical product information sheets.

14 l d l d OSRAM PARATHOM ® advanced | Technical Data OSRAM PARATHOM ® MR16 advanced Product reference Product number ( EAN ) 1 1 2 GU5.3 – 12 V – 24° – Box MR16 20 24° advanced 1 4008321884695 5 210 900 2700 80 ✓ 48 50 25,000 A MR16 35 24° advanced 2 4008321884985 6.5 350 1050 2700 80 ✓ 48 50 25,000 A GU5.3 – 12 V – 36° – Box MR16 20 36° advanced 1 4008321884923 5 210 550 2700 80 ✓ 48 50 25,000 A MR16 20 36° advanced 1 4008321884756 5 210 550 3000 80 ✓ 48 50 25,000 A MR16 20 36° advanced 1 4008321884954 5 210 550 4000 80 ✓ 48 50 25,000 A MR16 35 36° advanced 2 4008321885135 6.5 350 780 2700 80 ✓ 48 50 25,000 A MR16 35 36° advanced 2 4008321885166 6.5 350 780 3000 80 ✓ 48 50 25,000 A MR16 35 36° advanced 2 4008321885197 6.5 350 780 4000 80 ✓ 48 50 25,000 A 1 2 Basis: Electricity price £ 0.25/kWh, lamp costs = RRP ( European average ) , relamping costs/light source £ 2.00 ( 0.05 hours at £ 40/hour ) , hours burned per day/year: 12 h/4368 h OSRAM PARATHOM ® MR16 advanced MR16 low voltage reﬂ ector lamps with GU5.3 retroﬁ t base — Average life of 25,000 hours — Compatible with transformers available on the market 3 — High resistance to switching transients ( up to 100,000 switching cycles ) — Good colour rendering — Very narrow colour location — Dimmable 2 — Available in light colours 2700, 3000, 4000 K — Replacement options:– 20 W halogen lamp – MR16 20 advanced– 35 W halogen lamp – MR16 35 advanced — Standard pack: 10 Impressive facts & ﬁ gures: Replacing a conventional halogen lamp with a PARATHOM ® MR16 35 36° advanced lamp can pay for itself after only 6 months. Lamp type DECOSTAR ® 51 PARATHOM ® MR16 35 36° advanced Number of light points 1 1 Lamp wattage 35 W 6.5 W Average life 2000 h 25,000 h Lamp replacement costs 2.88 £/unit 18.80 £/unit Connected load 0.035 kW 0.0065 kW Number of lamps required in 12 months 3 lamps 1 lamp Lamp purchase and relamping costs 14.64 £ 20.80 £ Power consumption after 12 months 152.9 kWh 28.4 kWh Savings after 1 year 24.96 £ Savings after 2 years 65.84 £ 1 All the technical parameters apply to the entire lamp. In view of the complex manufacturing process for light emitting diodes, the typical values given above for the technical LED parameters are merely statistical values that do not necessarily correspond to the actual technical parameters of an individual product; individual products may vary from the typical values. 2 LED lamps can be operated on a wide range of standard dimmers; for details and results of compatibility tests go to www.osram.co.uk/dim and the links on that page to additional technical product information sheets. 3 For details go to www.osram.co.uk/low-voltage-ledlamps

15 l d l d l d OSRAM PARATHOM ® advanced | Technical Data OSRAM PARATHOM ® CLASSIC A advanced Product reference Product number ( EAN ) 1 1 2 E27 – 220–240 V – Box CL A40 advanced frosted 1 4052899911161 6 470 2700 80 ✓ 110 60 20,000 A+ CL A40 advanced clear sparkling 2 4052899913806 6 470 2700 80 ✓ 110 60 20,000 A+ CL A60 advanced frosted 1 4052899911208 10 810 2700 80 ✓ 110 60 20,000 A+ CL A60 advanced clear sparkling 2 4052899913820 10 810 2700 80 ✓ 110 60 20,000 A+ CL A75 advanced frosted 3 4052899914384 13.5 1055 2700 80 ✓ 116 62 20,000 A+ 1 2 3 Basis: Electricity price £ 0.25/kWh, lamp costs = RRP ( European average ) , relamping costs/light source £ 2.00 ( 0.05 hours at £ 40/hour ) , hours burned per day/year: 12 h/4368 h OSRAM PARATHOM ® CLASSIC A advanced Mains voltage LED lamps with classic bulb shape and E27 retroﬁ t screw base — Average life of up to 20,000 hours — Complete A40 and A60 product portfolio “made in Italy” — Dimmable 2 — New: CLASSIC A40 and A60 advanced now also available in clear sparkling — Replacement options:– 40 W incandescent lamp – CLASSIC A40 advanced– 60 W incandescent lamp – CLASSIC A60 advanced– 75 W incandescent lamp – CLASSIC A75 advanced — Standard pack: 10 Impressive facts & ﬁ gures: Replacing a conventional incandescent lamp with a PARATHOM ® CLASSIC A60 advanced lamp can pay for itself after only 4 months. 1 All the technical parameters apply to the entire lamp. In view of the complex manufacturing process for light emitting diodes, the typical values given above for the technical LED parameters are merely statistical values that do not necessarily correspond to the actual technical parameters of an individual product; individual products may vary from the typical values. 2 LED lamps can be operated on a wide range of standard dimmers; for details and results of compatibility tests go to www.osram.co.uk/dim and the links on that page to additional technical product information sheets. Lamp type Incandescent lamp CLASSIC A60 PARATHOM ® CLASSIC A60 advanced Number of light points 1 1 Lamp wattage 60 W 10 W Average life 1000 h 20,000 h Lamp replacement costs 1.39 £/unit 21.20 £/unit Connected load 0.06 kW 0.01 kW Number of lamps required in 12 months 5 lamps 1 lamp Lamp purchase and relamping costs 16.95 £ 23.20 £ Power consumption after 12 months 262.1 kWh 43.7 kWh Savings after 1 year 48.35 £ Savings after 2 years 116.51 £

16 l d l d l d l d OSRAM PARATHOM ® advanced | Technical Data OSRAM PARATHOM ® CLASSIC B advanced Product reference Product number ( EAN ) 1 1 2 E14 – 220–240 V – Box CL B25 advanced frosted 1 4008321994035 3.8 250 2700 80 ✓ 102 38 25,000 A+ CL B25 advanced clear sparkling 2 4008321979230 3.8 250 2700 80 ✓ 102 38 25,000 A+ CL B40 advanced frosted 3 4052899911437 6 470 2700 80 ✓ 110 38 20,000 A+ CL B40 advanced clear sparkling 4 4052899911413 6 470 2700 80 ✓ 110 38 20,000 A+ 1 2 3 4 Basis: Electricity price £ 0.25/kWh, lamp costs = RRP ( European average ) , relamping costs/light source £ 2.00 ( 0.05 hours at £ 40/hour ) , hours burned per day/year: 12 h/4368 h OSRAM PARATHOM ® CLASSIC B advanced Mains voltage LED lamps with classic candle shape and E14 retroﬁ t screw base — Average life of up to 25,000 hours — New: Genuine 40 W replacement for incandescent candle lamps — Dimmable 2 — Replacement options:– 25 W incandescent lamp – CLASSIC B25– 40 W incandescent lamp – CLASSIC B40 — Standard pack: 10 Impressive facts & ﬁ gures: Replacing a conventional incandescent lamp with a PARATHOM ® CLASSIC B40 advanced lamp can pay for itself after only 4 months. Lamp type Incandescent lamp CLASSIC B40 PARATHOM ® CLASSIC B40 advanced Number of light points 1 1 Lamp wattage 40 W 6 W Average life 1000 h 20,000 h Lamp replacement costs 1.83 £/unit 16.72 £/unit Connected load 0.04 kW 0.006 kW Number of lamps required in 12 months 5 lamps 1 lamp Lamp purchase and relamping costs 19.15 £ 18.72 £ Power consumption after 12 months 174.7 kWh 26.2 kWh Savings after 1 year 37.56 £ Savings after 2 years 90.01 £ 1 All the technical parameters apply to the entire lamp. In view of the complex manufacturing process for light emitting diodes, the typical values given above for the technical LED parameters are merely statistical values that do not necessarily correspond to the actual technical parameters of an individual product; individual products may vary from the typical values. 2 LED lamps can be operated on a wide range of standard dimmers; for details and results of compatibility tests go to www.osram.co.uk/dim and the links on that page to additional technical product information sheets.

17 l d l d l d l d OSRAM PARATHOM ® advanced | Technical Data 2 3 4 OSRAM PARATHOM ® CLASSIC P advanced Product reference Product number ( EAN ) 1 1 2 E14 – 220–240 V – Box CL P25 advanced frosted 1 4052899911444 3.8 250 2700 80 ✓ 82 42.8 25,000 A+ CL P25 advanced clear sparkling 2 4008321980373 3.8 250 2700 80 ✓ 82 42.8 25,000 A+ CL P40 advanced frosted – 4052899911918 6 470 2700 80 ✓ 89 43 20,000 A+ CL P40 advanced clear sparkling – 4052899911451 6 470 2700 80 ✓ 89 43 20,000 A+ E27 – 220–240 V – Box CL P25 advanced frosted – 4052899911468 3.8 250 2700 80 ✓ 79 42.8 25,000 A+ CL P25 advanced clear sparkling – 4008321992352 3.8 250 2700 80 ✓ 79 42.8 25,000 A+ CL P40 advanced frosted 3 4052899911925 6 470 2700 80 ✓ 89 43 20,000 A+ CL P40 advanced clear sparkling 4 4052899911475 6 470 2700 80 ✓ 89 43 20,000 A+ 1 Basis: Electricity price £ 0.25/kWh, lamp costs = RRP ( European average ) , relamping costs/light source £ 2.00 ( 0.05 hours at £ 40/hour ) , hours burned per day/year: 12 h/4368 h OSRAM PARATHOM ® CLASSIC P advanced Mains voltage LED lamps with classic round bulb shape and E14 or E27 retroﬁ t screw base — Average life of up to 25,000 hours — New: Genuine 40 W replacement for incandescent round bulb lamps — Dimmable 2 — Replacement options:– 25 W incandescent lamp – CLASSIC P25– 40 W incandescent lamp – CLASSIC P40 — Standard pack: 10 Impressive facts & ﬁ gures: Replacing a conventional incandescent lamp with a PARATHOM ® CLASSIC P25 advanced lamp can pay for itself after only 6 months. Lamp type Incandescent lamp CLASSIC P25 PARATHOM ® CLASSIC P25 advanced Number of light points 1 1 Lamp wattage 25 W 3.8 W Average life 1000 h 25,000 h Lamp replacement costs 1.83 £/unit 14.35 £/unit Connected load 0.025 kW 0.0038 kW Number of lamps required in 12 months 5 lamps 1 lamp Lamp purchase and relamping costs 19.15 £ 16.35 £ Power consumption after 12 months 109.2 kWh 16.6 kWh Savings after 1 year 25.95 £ Savings after 2 years 64.42 £ 1 All the technical parameters apply to the entire lamp. In view of the complex manufacturing process for light emitting diodes, the typical values given above for the technical LED parameters are merely statistical values that do not necessarily correspond to the actual technical parameters of an individual product; individual products may vary from the typical values. 2 LED lamps can be operated on a wide range of standard dimmers; for details and results of compatibility tests go to www.osram.co.uk/dim and the links on that page to additional technical product information sheets.

18 OSRAM PARATHOM ® | Beneﬁ ts Versatile LED lamps for standard applications: OSRAM PARATHOM ® A broad product portfolio, good photometric and performance values and an impressive price/performance ratio make OSRAM PARATHOM ® LED lamps ﬁ rst-class alternatives for a wide range of standard lighting situations. OSRAM PARATHOM ® — Wide basic range — Very good price/performance ratio — Good colour rendering — All LED lamps comply with the ErP requirements which come into force in September 2013 Better safe than sorry OSRAM offers a four-year guarantee on PARATHOM ® LED lamps operated in accordance with OSRAM speciﬁ cations ( for precise terms and conditions of the guarantee go to www.osram.co.uk/guarantee ) .

19 l d l d OSRAM PARATHOM ® | Technical Data OSRAM PARATHOM ® PAR16/MR16 Product reference Product number ( EAN ) 1 1 OSRAM PARATHOM ® PAR16 GU10 – 220–240 V – 36° – Box PAR16 20 36° 1 4052899910362 2.5 130 350 2700 80 – 53 50 15,000 A+ PAR16 35 36° 1 4052899910379 4.6 245 600 2700 80 – 53 50 15,000 A+ OSRAM PARATHOM ® MR16 GU5.3 – 12 V – 36° – Box MR16 20 36° 2 4052899910409 4.5 231 600 2700 80 – 46 50 15,000 A MR16 35 36° 3 4052899910782 7 365 800 2700 80 – 48 50 15,000 A 1 2 3 OSRAM PARATHOM ® PAR16 PAR16 mains voltage reﬂ ector lamps with GU10 retroﬁ t base — Very good price/performance ratio — Ideal replacement in existing halogen luminaires — Beam angle of 36° — Replacement options:– 20 W halogen lamp – PAR16 20– 35 W halogen lamp – PAR16 35 — Standard pack: 10 Impressive facts & ﬁ gures: Replacing a conventional halogen lamp with a PARATHOM ® PAR16 35 36° lamp can pay for itself after only 4 months. Basis: Electricity price £ 0.25/kWh, lamp costs = RRP ( European average ) , relamping costs/light source £ 2.00 ( 0.05 hours at £ 40/hour ) , hours burned per day/year: 12 h/4368 h OSRAM PARATHOM ® MR16 MR16 low voltage reﬂ ector lamps with GU5.3 retroﬁ t base — Very good price/performance ratio — Compatible with a large number of transformers available on the market 2 — Ideal replacement in existing low voltage halogen reﬂ ector luminaires — Replacement options:– 20 W halogen lamp – MR16 20– 35 W halogen lamp – MR16 35 — Standard pack: 10 Impressive facts & ﬁ gures: Replacing a conventional halogen lamp with a PARATHOM ® MR16 20 36° lamp can pay for itself after only 6 months. 1 All the technical parameters apply to the entire lamp. In view of the complex manufacturing process for light emitting diodes, the typical values given above for the technical LED parameters are merely statistical values that do not necessarily correspond to the actual technical parameters of an individual product; individual products may vary from the typical values. 2 For details go to www.osram.co.uk/low-voltage-ledlamps Lamp type HALOPAR ® 16 PARATHOM ® PAR16 35 36° Number of light points 1 1 Lamp wattage 35 W 4.6 W Average life 2000 h 15,000 h Lamp replacement costs 3.32 £/unit 12.24 £/unit Connected load 0.035 kW 0.0046 kW Number of lamps required in 12 months 3 lamps 1 lamp Lamp purchase and relamping costs 15.96 £ 14.25 £ Power consumption after 12 months 152.9 kWh 20.1 kWh Savings after 1 year 34.92 £ Savings after 2 years 78.75 £ Lamp type DECOSTAR ® 51 PARATHOM ® MR16 20 36° Number of light points 1 1 Lamp wattage 20 W 4.5 W Average life 2000 h 15,000 h Lamp replacement costs 2.88 £/unit 11.76 £/unit Connected load 0.02 kW 0.0045 kW Number of lamps required in 12 months 3 lamps 1 lamp Lamp purchase and relamping costs 14.64 £ 13.76 £ Power consumption after 12 months 84.4 kWh 19.7 kWh Savings after 1 year 17.81 £ Savings after 2 years 44.49 £

20 OSRAM PARATHOM ® | Technical Data OSRAM PARATHOM ® PRO PAR30/38 Product reference Product number ( EAN ) 1 1 OSRAM PARATHOM ® PRO PAR30 E27 – 100–240 V – 30° – Box PRO PAR30 90 30° 1 4008321746238 13 800 2600 3000 80 – 92 96 40,000 A OSRAM PARATHOM ® PRO PAR38 E27 – 220–240 V – 20° – Box PRO PAR38 100 20° 2 4008321746252 15 900 5000 3000 80 – 130 121 40,000 A 1 2 OSRAM PARATHOM ® PRO PAR30 PRO PAR30 mains voltage LED reﬂ ector lamps with E27 retroﬁ t screw base — High resistance to switching transients ( up to 100,000 switching cycles ) — Good colour rendering — High luminous efﬁ cacy — High luminous intensity — Warm light colour ( 3000 K ) — Replacement options:– 90 W halogen lamp – PRO PAR30 90 — Standard pack: 15 Impressive facts & ﬁ gures: Replacing a conventional halogen lamp with a PARATHOM ® PRO PAR30 90 30° lamp can pay for itself after only 6 months. OSRAM PARATHOM ® PRO PAR38 PRO PAR38 mains voltage LED reﬂ ector lamps with E27 retroﬁ t screw base — High resistance to switching transients ( up to 100,000 switching cycles ) — Good colour rendering — High luminous efﬁ cacy — High luminous intensity — Warm light colour ( 3000 K ) — Replacement options:– 100 W halogen lamp – PRO PAR38 100 — Standard pack: 12 Impressive facts & ﬁ gures: Replacing a conventional halogen lamp with a PARATHOM ® PRO PAR38 100 20° lamp can pay for itself after only 6 months. Basis: Electricity price £ 0.25/kWh, lamp costs = RRP ( European average ) , relamping costs/light source £ 2.00 ( 0.05 hours at £ 40/hour ) , hours burned per day/year: 12 h/4368 h Lamp type HALOPAR ® 30 PARATHOM ® PRO PAR30 90 30° Number of light points 1 1 Lamp wattage 75 W 13 W Average life 2000 h 40,000 h Lamp replacement costs 12.88 £/unit 50.60 £/unit Connected load 0.075 kW 0.013 kW Number of lamps required in 12 months 3 lamps 1 lamp Lamp purchase and relamping costs 44.64 £ 52.60 £ Power consumption after 12 months 327.6 kWh 56.8 kWh Savings after 1 year 59.74 £ Savings after 2 years 157.21 £ Lamp type HALOPAR ® 38 PARATHOM ® PRO PAR38 100 20° Number of light points 1 1 Lamp wattage 100 W 15 W Average life 2000 h 40,000 h Lamp replacement costs 15.48 £/unit 58.80 £/unit Connected load 0.1 kW 0.015 kW Number of lamps required in 12 months 3 lamps 1 lamp Lamp purchase and relamping costs 52.44 £ 60.80 £ Power consumption after 12 months 436.8 kWh 65.5 kWh Savings after 1 year 84.46 £ Savings after 2 years 212.24 £ 1 All the technical parameters apply to the entire lamp. In view of the complex manufacturing process for light emitting diodes, the typical values given above for the technical LED parameters are merely statistical values that do not necessarily correspond to the actual technical parameters of an individual product; individual products may vary from the typical values.

21 l d l d OSRAM PARATHOM ® | Technical Data OSRAM PARATHOM ® MR11/R50 Product reference Product number ( EAN ) 1 1 OSRAM PARATHOM ® MR11 GU4 – 12 V – 30° – Box MR11 20 30° 1 4052899910423 3.7 200 550 2700 80 – 39 34.7 15,000 A+ OSRAM PARATHOM ® R50 E14 – 220–240 V – 30° – Box R50 40 30° 2 4052899920514 3.9 196 540 2700 80 – 85 50 15,000 A+ 1 2 OSRAM PARATHOM ® R50 R50 mains voltage LED reﬂ ector lamp with E14 retroﬁ t screw base — Very good price/performance ratio — Energy savings of up to 90 % compared with a standard incandescent lamp — Average life of up to 15,000 hours — Replacement options:– 40 W incandescent spot lamp – R50 40 — Standard pack: 10 Impressive facts & ﬁ gures: Replacing a conventional incandescent lamp with a PARATHOM ® R50 lamp can pay for itself after only 3 months OSRAM PARATHOM ® MR11 MR11 low voltage reﬂ ector lamps with GU4 retroﬁ t base — Very good price/performance ratio — Average life of up to 15,000 hours — Compatible with a large number of transformers available on the market 2 — Ideal replacement in existing low voltage halogen reﬂ ector luminaires — Replacement options:– 20 W halogen lamp – MR11 20 — Standard pack: 10 Impressive facts & ﬁ gures: Replacing a conventional halogen lamp with a PARATHOM ® MR11 lamp can pay for itself after only 3 months. Basis: Electricity price £ 0.25/kWh, lamp costs = RRP ( European average ) , relamping costs/light source £ 2.00 ( 0.05 hours at £ 40/hour ) , hours burned per day/year: 12 h/4368 h Lamp type DECOSTAR ® 35 PARATHOM ® MR11 20 30° Number of light points 1 1 Lamp wattage 20 W 3.7 W Average life 2000 h 15,000 h Lamp replacement costs 3.61 £/unit 18.82 £/unit Connected load 0.02 kW 0.0037 kW Number of lamps required in 12 months 3 lamps 1 lamp Lamp purchase and relamping costs 16.83 £ 20.82 £ Power consumption after 12 months 87.4 kWh 16.2 kWh Savings after 1 year 13.81 £ Savings after 2 years 42.83 £ Lamp type CONCENTRA SPOT R50 PARATHOM ® R50 40 30° Number of light points 1 1 Lamp wattage 40 W 3.9 W Average life 1000 h 15,000 h Lamp replacement costs 3.46 £/unit 14.95 £/unit Connected load 0.04 kW 0.004 kW Number of lamps required in 12 months 5 lamps 1 lamp Lamp purchase and relamping costs 27.30 £ 16.95 £ Power consumption after 12 months 174.7 kWh 17.0 kWh Savings after 1 year 49.77 £ Savings after 2 years 111.03 £ 1 All the technical parameters apply to the entire lamp. In view of the complex manufacturing process for light emitting diodes, the typical values given above for the technical LED parameters are merely statistical values that do not necessarily correspond to the actual technical parameters of an individual product; individual products may vary from the typical values. 2 For details go to www.osram.co.uk/low-voltage-ledlamps

22 l d l d OSRAM PARATHOM ® | Technical Data OSRAM PARATHOM ® CLASSIC A Product reference Product number ( EAN ) 1 1 E27 – 220–240 V – Box CL A15 clear 1 4052899911284 2 136 2700 80 – 102 55 15,000 A+ CL A25 frosted 2 4052899911710 4 250 2700 80 – 110 60 15,000 A+ CL A40 frosted 2 4052899911727 7 470 2700 80 – 110 60 15,000 A+ CL A60 frosted 2 4052899911734 10 810 2700 80 – 110 60 15,000 A+ B22d – 220–240 V – Blister CL A40 frosted 3 4008321981134 8 470 2700 80 – 110 60 15,000 A CL A60 frosted 3 4008321993113 10 810 2700 80 – 110 60 15,000 A+ 1 2 3 Basis: Electricity price £ 0.25/kWh, lamp costs = RRP ( European average ) , relamping costs/light source £ 2.00 ( 0.05 hours at £ 40/hour ) , hours burned per day/year: 12 h/4368 h OSRAM PARATHOM ® CLASSIC A Mains voltage LED lamps with classic bulb shape and E27 retroﬁ t screw base or B22d bayonet cap — Very good price/performance ratio — Average life of up to 15,000 hours — Pleasant beam angle — Replacement options:– 15 W incandescent lamp – CLASSIC A15– 25 W incandescent lamp – CLASSIC A25– 40 W incandescent lamp – CLASSIC A40– 60 W incandescent lamp – CLASSIC A60 — Standard pack: 10 Impressive facts & ﬁ gures: Replacing a conventional incandescent lamp with a PARATHOM ® CLASSIC A40 lamp can pay for itself after only 3 months. Lamp type Incandescent lamp CLASSIC A40 PARATHOM ® CLASSIC A40 Number of light points 1 1 Lamp wattage 40 W 7 W Average life 1000 h 15,000 h Lamp replacement costs 1.39 £/unit 9.24 £/unit Connected load 0.04 kW 0.007 kW Number of lamps required in 12 months 5 lamps 1 lamp Lamp purchase and relamping costs 16.95 £ 11.24 £ Power consumption after 12 months 174.7 kWh 30.6 kWh Savings after 1 year 41.75 £ Savings after 2 years 91.34 £ 1 All the technical parameters apply to the entire lamp. In view of the complex manufacturing process for light emitting diodes, the typical values given above for the technical LED parameters are merely statistical values that do not necessarily correspond to the actual technical parameters of an individual product; individual products may vary from the typical values. d l

23 l d l d l d l d OSRAM PARATHOM ® | Technical Data 2 3 4 OSRAM PARATHOM ® CLASSIC B Product reference Product number ( EAN ) 1 1 E14 – 220–240 V – Box CL B15 clear 1 4052899911291 2 136 2700 80 – 92 35 15,000 A+ CL B25 clear 2 4052899913639 4 250 2700 80 – 97 35 15,000 A+ CL B25 frosted 3 4052899031920 3.6 250 2700 80 – 100 35 15,000 A+ CL B40 frosted – 4052899912007 6 470 2700 80 – 110 38 20,000 A+ CL B40 clear sparkling 4 4052899911994 6 470 2700 80 – 110 38 20,000 A+ 1 Basis: Electricity price £ 0.25/kWh, lamp costs = RRP ( European average ) , relamping costs/light source £ 2.00 ( 0.05 hours at £ 40/hour ) , hours burned per day/year: 12 h/4368 h OSRAM PARATHOM ® CLASSIC B Mains voltage LED lamps with classic candle shape and E14 retroﬁ t screw base — Very good price/performance ratio — Average life of up to 20,000 hours — Replacement options:– 15 W incandescent lamp – CLASSIC B15– 25 W incandescent lamp – CLASSIC B25– 40 W incandescent lamp – CLASSIC B40 — Standard pack: 10 Impressive facts & ﬁ gures: Replacing a conventional incandescent lamp with a PARATHOM ® CLASSIC B25 clear lamp can pay for itself after only 4 months. Lamp type Incandescent lamp CLASSIC B25 PARATHOM ® CLASSIC B25 clear Number of light points 1 1 Lamp wattage 25 W 4 W Average life 1000 h 15,000 h Lamp replacement costs 1.83 £/unit 11.76 £/unit Connected load 0.025 kW 0.004 kW Number of lamps required in 12 months 5 lamps 1 lamp Lamp purchase and relamping costs 19.15 £ 13.76 £ Power consumption after 12 months 109.2 kWh 17.5 kWh Savings after 1 year 28.32 £ Savings after 2 years 66.57 £ 1 All the technical parameters apply to the entire lamp. In view of the complex manufacturing process for light emitting diodes, the typical values given above for the technical LED parameters are merely statistical values that do not necessarily correspond to the actual technical parameters of an individual product; individual products may vary from the typical values.

24 l d l d l d l d OSRAM PARATHOM ® | Technical Data 2 3 4 OSRAM PARATHOM ® CLASSIC P Product reference Product number ( EAN ) 1 1 E14 – 220–240 V – Box CL P15 clear 1 4052899911307 2 136 2700 80 – 80 45 15,000 A+ CL P25 clear 2 4052899913660 4 250 2700 80 – 78 45 15,000 A+ CL P25 frosted – 4052899031982 3.6 250 2700 80 – 78 45 15,000 A+ CL P40 frosted – 4052899912014 6 470 2700 80 – 89 43 20,000 A+ CL P40 clear sparkling – 4052899912045 6 470 2700 80 – 89 43 20,000 A+ E27 – 220–240 V – Box CL P15 clear – 4052899911314 2 136 2700 80 – 80 45 15,000 A+ CL P25 clear – 4052899913691 4 250 2700 80 – 78 45 15,000 A+ CL P25 frosted – 4052899032040 3.6 250 2700 80 – 78 45 15,000 A+ CL P40 frosted 3 4052899912021 6 470 2700 80 – 89 43 20,000 A+ CL P40 clear sparkling 4 4052899912038 6 470 2700 80 – 89 43 20,000 A+ 1 Basis: Electricity price £ 0.25/kWh, lamp costs = RRP ( European average ) , relamping costs/light source £ 2.00 ( 0.05 hours at £ 40/hour ) , hours burned per day/year: 12 h/4368 h OSRAM PARATHOM ® CLASSIC P Mains voltage LED lamps with classic round bulb shape and E14 or E27 retroﬁ t screw base — Very good price/performance ratio — Average life of up to 20,000 hours — Replacement options:– 15 W incandescent lamp – CLASSIC P15– 25 W incandescent lamp – CLASSIC P25– 40 W incandescent lamp – CLASSIC P40 — Standard pack: 10 Impressive facts & ﬁ gures: Replacing a conventional incandescent lamp with a PARATHOM ® CLASSIC P15 lamp can pay for itself after only 4 months. Lamp type Incandescent lamp CLASSIC P15 PARATHOM ® CLASSIC P15 Number of light points 1 1 Lamp wattage 15 W 2 W Average life 1000 h 15,000 h Lamp replacement costs 1.83 £/unit 7.76 £/unit Connected load 0.015 kW 0.002 kW Number of lamps required in 12 months 5 lamps 1 lamp Lamp purchase and relamping costs 19.15 £ 9.76 £ Power consumption after 12 months 65.5 kWh 8.7 kWh Savings after 1 year 23.59 £ Savings after 2 years 53.10 £ 1 All the technical parameters apply to the entire lamp. In view of the complex manufacturing process for light emitting diodes, the typical values given above for the technical LED parameters are merely statistical values that do not necessarily correspond to the actual technical parameters of an individual product; individual products may vary from the typical values.

25 OSRAM SubstiTUBE ® | Beneﬁ ts LED tubes as alternatives to T8 ﬂ uorescent tubes: OSRAM SubstiTUBE ® OSRAM SubstiTUBE ® LED tubes are the simple and reliable replacements for T8 ﬂ uorescent tubes in CCG luminaires 1, 2 . Thanks to their highly efﬁ cient LED technology they offer signiﬁ cant potential energy savings. SubstiTUBE ® lamps offer much lower energy and maintenance costs, particularly where lamps are in operation for long hours, such as ofﬁ ce corridors. 1 Only for use in CCG luminaires, not dimmable. 2 Because of the way that SubstiTUBE ® typically distributes its light the light characteristics of the luminaire may be different. After changing tubes, check whether the lighting still complies with the standards for workplace illumination, for example in an ofﬁ ce. 3 Depending on the type of tube and control gear. OSRAM SubstiTUBE ® — Genuine retroﬁ t solution for classic T8 ﬂ uorescent tubes in CCG luminaires 1, 2 — Quick, simple and safe relamping with no rewiring — Energy savings of up to 68 % compared with a 1.5 m T8 ﬂ uorescent tube ( SubstiTUBE ® Basic ) — Up to ﬁ ve times longer life than normal ﬂ uorescent tubes 3 — SubstiTUBE ® Basic: simple lighting tasks — SubstiTUBE ® Advanced: demanding lighting tasks with high luminous ﬂ ux

26 l d d 1 OSRAM SubstiTUBE ® | Technical Data 1 OSRAM SubstiTUBE ® Basic Product reference Product number ( EAN ) 1 1 G13 – 220–240 V – 160° – Box ST8-HB2-080-830 1 4052899913912 9 800 3000 80 – 590 27.8 40,000 A+ 2 ST8-HB2-090-840 1 4052899913929 9 900 4000 80 – 590 27.8 40,000 A+ ST8-HB2-090-865 1 4052899913936 9 900 6500 80 – 590 27.8 40,000 A+ ST8-HB4-175-830 1 4052899913943 18 1750 3000 80 – 1200 27.8 40,000 A+ ST8-HB4-190-840 1 4052899913950 18 1900 4000 80 – 1200 27.8 40,000 A+ ST8-HB4-190-865 1 4052899913967 18 1900 6500 80 – 1200 27.8 40,000 A+ ST8-HB5-200-830 1 4052899913974 22 2000 3000 80 – 1500 27.8 40,000 A+ 2 ST8-HB5-220-840 1 4052899913981 22 2200 4000 80 – 1500 27.8 40,000 A+ ST8-HB5-220-865 1 4052899913998 22 2200 6500 80 – 1500 27.8 40,000 A+ Lamp type 1.5 m T8 ﬂ uorescent tube SubstiTUBE ® Basic ST8-HB5 Number of light points 1 1 Average life 13,500 h 40,000 h Connected load 0.068 kW 0.023 kW Power consumption after 12 months 297.0 kWh 100.4 kWh Savings after 1 year 23.59 £ Basis: Electricity price £ 0.12/kWh, hours burned per day/year: 12 h/4368 h OSRAM SubstiTUBE ® Basic — For simple lighting tasks — High efﬁ ciency of up to 105 lm/W — Average life of up to 40,000 hours — Energy savings of up to 68 % compared with a 1.5 m T8 ﬂ uorescent tube — High resistance to switching transients ( up to 200,000 switching cycles ) — Mercury-free and RoHS compliant — Type of protection: IP20 — Standard pack: 25 Impressive: By replacing a single conventional T8 ﬂ uorescent tube with a SubstiTUBE ® Basic ST8-HB5 it is possible to save £ 23.59 a year. 1 All the technical parameters apply to the entire lamp. In view of the complex manufacturing process for light emitting diodes, the typical values given above for the technical LED parameters are merely statistical values that do not necessarily correspond to the actual technical parameters of an individual product; individual products may vary from the typical values. 2 Energy Efﬁ ciency Class A for operation with magnetic ballast.

27 l d d 1 OSRAM SubstiTUBE ® | Technical Data 1 OSRAM SubstiTUBE ® Advanced Product reference Product number ( EAN ) 1 1 G13 – 220–240 V – 130° – Box ST8-HA2-100-830 1 4008321993410 10 1000 3000 80 – 590 26 40,000 A+ ST8-HA2-110-840 1 4008321993434 10 1100 4000 80 – 590 26 40,000 A+ ST8-HA2-110-865 1 4008321993458 10 1100 6500 80 – 590 26 40,000 A+ ST8-HA4-200-830 1 4008321993472 20 2000 3000 80 – 1200 26 40,000 A+ ST8-HA4-220-840 1 4008321993496 20 2200 4000 80 – 1200 26 40,000 A+ ST8-HA4-220-865 1 4008321993519 20 2200 6500 80 – 1200 26 40,000 A+ ST8-HA5-300-830 1 4008321993533 30 3000 3000 80 – 1500 26 40,000 A+ ST8-HA5-330-840 1 4008321993557 30 3300 4000 80 – 1500 26 40,000 A+ ST8-HA5-330-865 1 4008321993571 30 3300 6500 80 – 1500 26 40,000 A+ with 28 mm end caps Lamp type 1.5 m T8 ﬂ uorescent tube SubstiTUBE ® Advanced ST8-HA5 Number of light points 1 1 Average life 13,500 h 40,000 h Connected load 0.068 kW 0.031 kW Power consumption after 12 months 297.0 kWh 135.4 kWh Savings after 1 year 19.39 £ Basis: Electricity price £ 0.12/kWh, hours burned per day/year: 12 h/4368 h OSRAM SubstiTUBE ® Advanced — For demanding lighting tasks with high luminous ﬂ ux — High efﬁ ciency of up to 110 lm/W — Average life of up to 40,000 hours — Energy savings of up to 61 % compared with a 0.6 m T8 ﬂ uorescent tube — High resistance to switching transients ( up to 200,000 switching cycles ) — Mercury-free and RoHS compliant — Type of protection: IP20 — Standard pack: 25 Impressive: By replacing a single conventional T8 ﬂ uorescent tube with a SubstiTUBE ® Advanced ST8-HA5 it is possible to save £ 19.39 a year. 1 All the technical parameters apply to the entire lamp. In view of the complex manufacturing process for light emitting diodes, the typical values given above for the technical LED parameters are merely statistical values that do not necessarily correspond to the actual technical parameters of an individual product; individual products may vary from the typical values.

28 OSRAM PARATHOM ® for special applications | Beneﬁ ts Lighting specialists: OSRAM PARATHOM ® for special applications PARATHOM ® Special T26 and LEDinestra ® are ideal for special applications in which low thermal output, high efﬁ ciency and long life are required. Cool lighting Ideal for refrigerator lighting: PARATHOM ® Special T26 is compact and robust and despite its excellent light output it produces very little heat. OSRAM PARATHOM ® Special T26 — Average life of up to 25,000 hours — Ideal for small and decorative luminaires — Two light colours: Warm White ( 2700 K ) and Cool White ( 5500 K ) OSRAM LEDinestra ® — Average life of up to 12,000 hours — Two plug-in base versions: S14s and S14d

29 l d OSRAM PARATHOM ® for special applications | Technical Data OSRAM PARATHOM ® Special T26 Special mains voltage LED lamps with E14 retroﬁ t screw base — Very good price/performance ratio — Average life of up to 25,000 hours — Robust and extremely small — Standard pack: 20 OSRAM LEDinestra ® Special tubular mains voltage LED lamps S14s or S14d retroﬁ t base — Very good price/performance ratio — Average life of up to 12,000 hours — Ideal replacement for conventional tubular lamps ( incandescent lamps ) — Good colour rendering — Standard pack: 5 OSRAM PARATHOM ® Special T26, OSRAM LEDinestra ® Product reference Product number ( EAN ) 1 1 OSRAM PARATHOM ® Special T26 E14 – 220–240 V – Box Special T26 frosted 1 4052899907157 1.4 100 5500 80 – 63 23.5 25,000 A++ Special T26 frosted 1 4052899907119 1.4 100 2700 80 – 63 23.5 25,000 A++ OSRAM LEDinestra ® S14s – 220–240 V – Box LEDinestra frosted 6W S14s 2 4008321975317 6 250 2700 88 – 300 28.5 12,000 A LEDinestra ® S14d – 220–240 V – Box LEDinestra frosted 6W S14d 2 4008321975331 6 250 2700 88 – 300 28.5 12,000 A 1 2 3 1 All the technical parameters apply to the entire lamp. In view of the complex manufacturing process for light emitting diodes, the typical values given above for the technical LED parameters are merely statistical values that do not necessarily correspond to the actual technical parameters of an individual product; individual products may vary from the typical values.

30 OSRAM | LED Competence & Factors for Success Our LED competence for success in your lighting business LED lamps from OSRAM are not only modern and stylish, they offer many beneﬁ ts in terms of technology and sustainability thanks to their outstanding quality, including extremely long life, high quality of light and excellent economy. OSRAM LED lamps are right for your business OSRAM invests primarily in two areas, namely in research and development, and also in permanent quality assurance. This combination of innovation and application focus results in signiﬁ cant added value – and at an outstanding price/performance ratio. In deciding to purchase OSRAM LED lamps your customers are therefore getting products which: — meet the special requirements of their particular applications — are state of the art — comply with the highest quality standards OSRAM LED lamps can be used almost anywhere Thanks to OSRAM’s broad product portfolio, there are LED lamps now available to provide ideal lighting in many different applications – for new installations and for replacing classic incandescent lamps, halogen lamps and T8 ﬂ uorescent tubes 1 . The most important factors for your success: Outstanding quality — Up to 1,000,000 switching cycles — White light with good to excellent colour rendering — Warm white light colour similar to that from an ordinary light bulb — Excellent resistance to shock and vibrations — Available in many familiar shapes and with standard bases for simple replacement — Instant 100 % light Excellent sustainability — Up to 90 % lower CO 2 emissions compared with conventional incandescent and halogen lamps — Outstanding eco-balance thanks to low energy consumption during manufacture — Low energy consumption during operation — Mercury-free — Less waste and low consumption of resources thanks to extremely long life High efﬁ ciency — Energy savings of up to 90 % compared with a conventional incandescent or halogen lamp with a similar light output — Lamp life up to 50,000 hours — Straightforward replacement so no need to change the luminaire or the system — Reduced air-conditioning costs thanks to low thermal output 1 Because of the way that SubstiTUBE ® typically distributes its light the light characteristics of the luminaire may be different. After changing tubes, check whether the lighting still complies with the standards for workplace illumination, for example in an ofﬁ ce.

31 OSRAM | LED Competence & Factors for Success Quick paybackThanks to incredibly low energy consumption and extremely long life, LED technology will pay for itself in only a short time both in the home and especially in commercial premises. The economics of OSRAM LED lamps is a powerful sales argument. In addition to the most important product features, technical data and ordering information, a sample payback calculation is provided for the various PARATHOM ® lamp types. Special OSRAM guaranteeOur engineering know-how, our insistence on using only top quality components and our strict quality assurance procedures have all paid off. OSRAM there-fore offers a ﬁ ve-year guarantee on PARATHOM ® PRO LED lamps and a four-year guarantee on PARATHOM ® and PARATHOM ® advanced LED lamps, provided they are operated in accordance with OSRAM speciﬁ cations. For the terms and conditions of the guarantee go to www.osram.co.uk/guarantee

32 OSRAM LED Lamps | Implementation of EU Regulations Innovative and compliant – the new OSRAM LED lamp portfolio From September 1, 2013 two new EU Regulations will deﬁ ne the minimum requirements for efﬁ ciency, functionality and product information for lamps – and for the ﬁ rst time will also cover LED lamps and LED luminaires. OSRAM’s new LED lamp portfolio meets all statutory requirements – and in most cases exceeds them. Ecodesign Regulation ( ErP ) The aim of Regulation EU 1194/2012 is to promote the most efﬁ cient products by requiring relevant information to be provided on the packaging. From September 1, 2013 the following new requirements will apply to the operational characteristics of LED lamps. At the same time, Regulation EU 1194/2012 will impose new requirements on the packaging of lamps with focused light. All OSRAM LED lamps already meet the minimum requirements. Operational parameters Requirements ( unless otherwise indicated ) Lamp life factor at 6000 h From March 1, 2014: ≥ 0.90 Residual luminous ﬂ ux at 6000 h From March 1, 2014: ≥ 0.80 Number of switching cycles until failure ≥ 15,000 if rated life of lamp ≥ 30,000 h; otherwise ≥ half the rated life of the lamp expressed in hours Ignition time 0.5 s Lamp startup time until 95 % luminous ﬂ ux 2 s Premature failure rate ≤ 5.0 % at 1000 h Colour rendering ( R a ) ≥ 80≥ 65 if the lamp is intended for outdoor or industrial applications ( as per para. 3.1.3 ( I ) in the Annex to the Regulation ) Colour consistency Deviation in colour value components within a MacAdam ellipse with up to 6 levels Power factor ( PF ) of lamps with integrated control gear P ≤ 2 W: no requirements2 W P ≤ 5 W: PF 0.45 W P ≤ 25 W: PF 0.5P 25 W: PF 0.9

33 OSRAM LED Lamps | Implementation of EU Regulations Energy Consumption Labeling Regulation The aim of Regulation EU 874/2012 is to promote the most efﬁ cient products by requiring relevant information to be provided on the packaging. Among other things, it prescribes that at the point of sale the packaging for the lamp must indicate the energy consumption of the lamp. With its energy consumption labeling OSRAM complies with the requirement to provide relevant information on all packaging for LED lamps – in both text and graphic form. New energy efﬁ ciency classesThe Energy Efﬁ ciency Index ( EEI ) has been modiﬁ ed so that in future Classes A+ and A++ can be used for even more efﬁ cient lamps, while the old F and G classes have been removed. Energy Efﬁ ciency Class Weighted energy consump- tion in kWh per 1000 h Statutory efﬁ ciency and quality require-ments have an impact on product design as well as constant innovation and further development. So in the 2013/2014 lighting season we can offer you an even better, larger and fully compliant range of LED lamps for success in your lighting business. Since the average number of hours burned per year by a lamp is around 1000, this information makes it easy to calculate annual energy costs ( printed kWh value × electricity price/kWh = annual energy costs for the lamp )

www.osram.co.uk/ledlamps NEW! OSRAM Lamp Finder Professional – the free app OSRAM Ltd Customer Service Centre Neills Road Bold Industrial Park St Helens WA9 4XG Phone +44 ( 0 ) 1744 812221 Fax +44 ( 0 ) 1744 831900 [email protected] www.osram.co.uk We offer you the perfect choice As a lighting specialist with more than one hundred years of experience, OSRAM is the master of all lighting technologies and offers a wide range of products for all your lighting needs. OSRAM DULUX ® PRO Micro Twist 12 W E27 – genuine low-cost replacement for 60 W incandescent lamps ( 12 W ) in a particularly compact format Compact ﬂ uorescent lamps Highlights from our product range Halogen lamps High-intensity discharge lamps Fluorescent lamps HALOGEN ECO PRO CLASSIC A 46 W E27 – genuine replacement for incandescent lamps with a classic shape and twice the life ( up to 2000 hours ) POWERBALL ® HCI ® -T 50 W/830 – new addition to the basic HCI ® range with a luminous ﬂ ux of approx. 5000 lm LUMILUX ® T5 HO CONSTANT – constant luminous ﬂ ux over an extremely wide temperature range 4 0 0 R 1 3 3 GB 0 9 /1 3 Fi OSRAM S-GI MK-EM Subject to change without notice. Errors and omission excepted. As the name suggests, the new “OSRAM Lamp Finder Professional” app for Apple and Android smartphones and tablets will help you to ﬁ nd the right lamp for your particular requirements. www.osram.co.uk/lampﬁ nder-app Download here for free
